EG4130 Pro – 30 Input Meter Data Logger – EG4130
EG4130 Pro – 30 Input Meter Data Logger – EG4130
EG4130 Pro – 30 Input Meter Data Logger – EG4130

EG4130 Pro – 30 Input Meter Data Logger – EG4130

$0.00
$0.00

◤OVERVIEW

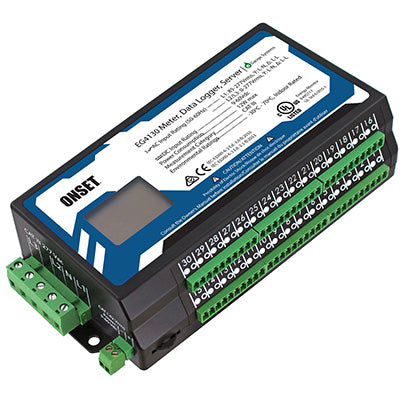

The EG4130 Pro combines an energy meter, data logger, and a web server. This powerful combination lets you measure, store and retrieve (V, A, VAr, kWh, etc.) data directly from the device or from a remote location via the internet. You can view historical and live data for the lifetime of the hardware with the unit’s convenient user interface (UI). Users have access to real-time values, long-term reports, an interactive graphical interface, and many other tools.

  • 30 sensor inputs
  • Supports wide range of current transformers (CTs) to accommodate virtually any size load
  • Built-in web server and graphical monitoring software
  • Custom view and alerts; CSV exports of granular data
  • Fully web-configurable
  • Built-in solid-state memory
  • No service contracts
  • No batteries


In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The EG4130 data logger supports the following measurements: AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Kilowatts (kW), Volt-Amp Reactive, Volt-Amp Reactive hour, Watt Hours (Wh) and Watts (W)

Measurement

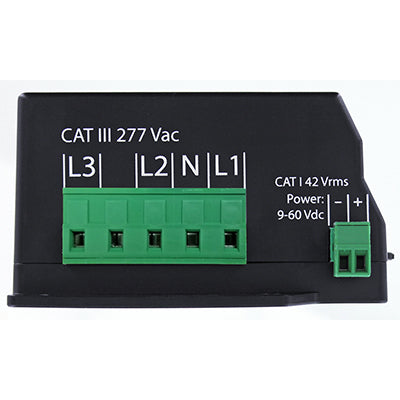

  • AC Voltage：
    。L1：85-277 Vrms
    。L2：0-277 Vrms
    。L3：0-277 Vrms
  • DC Voltage：
    。42 Vrms
    。Power：9-60 Vdc
    。Measurement：+/-60 Vdc
  • Current：
    。30 channels
    。5-6900A max per channel
    。Fully isolated inputs
  • Frequency：50 or 60 Hz
  • Logging Values：V, A, W, Wh, Hz, VA, VAr, THD, deg
  • Power Draw：12W max, 2W typical
Environmental
  • Op. Temperature：-30 to 70 deg C (-22 to 158 F)
  • Max Altitude：4000m (13,123ft)
  • Max Humidity：80% up to 31 deg C
  • Meas. Category：Overvoltage Category III
  • Location：Open type indoor device
  • Pollution Degree：2
Data Logger Capacity
  • Register Count：64 (data storage points)
  • Granularity：(duration/avg)
    。1 hour/1 second
    。1 year/1 minute
    。10 yrs/15 minute
    。Device Lifetime/1 Day
Safety and Regulatory
  • Safety：IEC/UL 61010-1 Ed. 3.0 B：2010
  • CE：
    。IEC 61000-6-1 Ed. 3.0 B：2016
    。IEC 61000-6-3 Ed. 2.1 B：2011
  • FCC：
    。FCC Title 47 CFR Part 15-Subpart B Class B
    。ICES-003 Information Technology Equipment Class B
Communication
  • Homeplug AV：Compatible with Homeplug AV- adapter within ~100ft. on same phase as L1

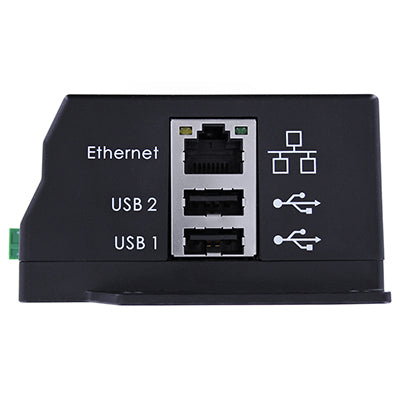

  • Ethernet：IEEE 802.3 – LAN
User Interface
  • Compatible Browsers：(Only up-to-date versions supported)
    。Google Chrome
    。Firefox
    。Safari
    。Internet Explorer
Enclosure
  • Material：FRABS
  • Dimensions：
    。17 x 8 x 4.6cm
    。(6.7 x 3.15 x 1.81in)
  • Weight：300g (0.66lbs)
  • Warranty Standard：2 years

  • Datasheet｜get
  • User's Manual｜get
